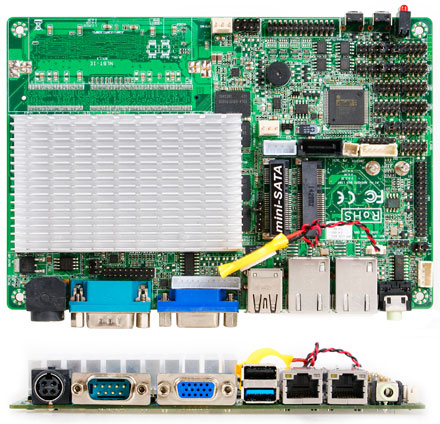

Jetway NLBT-IE2930-4G (Intel Bay Trail-M)

Jetway NLBT-IE2930-4G (Intel Bay Trail-M)

  • INTEL® BayTrail--M N2930 SOC Chipset
  • Onboard INTEL® BayTrail-M N2930 1.83GHz Quad Cores CPU
  • Support DirectX 11 3D Graphics Acceleration
  • On Board SAMSUNG 4G/1333MHz DDR3L DRAM
  • Integrated HD Audio CODEC
  • Support 2*PCI Express Gigabit LAN
  • Support SIM Card Socket
  • Support 24-bit Dual channel
  • Onboard 1*MiniPCI-E connector(Half size)
  • Onboard 1 *M- SATA connector(Full size)
  • Support G-sensor Function
  • Support TP Connector
  • All Tantalum Capacitor design
  • Support power onboard(wide voltage input :9~24V)
  • EPIC Form Factor(165mm X115mm)


Share

339.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :
CPU On board INTEL® BayTrail-M N2930 1.83GHz Quad Cores CPU 2 Phase CPU Power Support
Chipset INTEL® BayTrail-M N2930 SOC Chipset
I.O Chipset ITE IT8786E
Memory Onboard SAMSUNG 4G/1333MHz DDR3L DRAM
Expansion Slots 1* Mini PCI-E connector(Half size)
Storage 1* Serial ATA2 3Gb/s connector 1* M-SATA Connector(Full size)
Audio ALC887 Audio CODEC HD Audio CODEC
Ethernet LAN 2*INTEL® i211AT GIGALAN
LVDS Onboard 24-bit Dual channel
USB 5* USB 2.0/1.1(1 distribute in back panel, 4 distribute in mid-board) 1* USB3.0 (distribute in back panel)
Special Features Support G-Sensor Function Support TP Connector Support CPU Smart Fan Support Watch dog Technology Support GPIO Technology Support Power Onboard (9~24v wide voltage input) Support VGA header Support 1*20-pin HDMI header Support SIM Card socket Support 2*RS422/RS485/RS232 for COM2&COM3; Support Amplifier function(3W) Support Power& Reset Button All Tantalum Capacitor design All Power Pack MOSFET design
Back Panel I / O 1* DC-JACK(Co-lay 4-pin Power connector) 1* USB2.0/1.1 port 1* USB3.0 port 2* RJ-45 ports 1* COM port 1* Line-out connector 1* VGA port
­­Internal I / O 2* USB 2.0/1.1 headers for 4 USB 2.0/1.1 ports 1* CPU / Chassis Fan connector 2* System Fan connectors 5* COM headers (Support RS485/RS422/RS232 for COM2&COM3;) 1* Parallel header 1* 4-pin SATA Power connector 1* 12-pin VGA header 1* 20-pin HDMI header 1* 24-bit Dual Channel LVDS header 1* 4-pin Amplifier header 1* GPIO header 1* Mini PCI-e connector 1* M-SATA connector 1* SATA2.0 connectors 1* 4-pin PS/2 header
BIOS AMI 64MB DIP Flash ROM
Form Factor EPIC Form Factor(165mm X 115mm)
Data sheet Download (PDF)
Data sheet Print view
