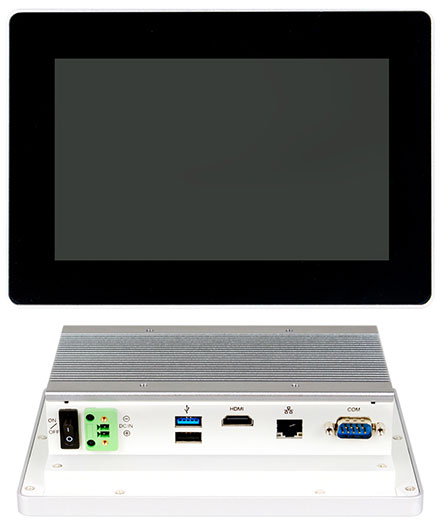

Jetway HPC070SC-FP2807A Panel-PC (7" 1024x600 PCAP Touchscreen, Intel N2807, 2GB RAM) [IP65/NEMA4 Front]

Jetway HPC070SC-FP2807A Panel-PC (7" 1024x600 PCAP Touchscreen, Intel N2807, 2GB RAM) [IP65/NEMA4 Front]

  • 7” 320 nits high brightness TFT LCD with LED backlight
  • 10-points Multi Capacitive Touch
  • Streamlined enclosure for highly efficient heat dissipation
  • Enclosed in robust aluminum casing
  • Edge-to-edge narrow bezel design and Fanless cooling system
  • Design for easy Wall mount, Panel Mount, VESA Mount installation
  • A true Flat, easy-to-clean front surface with edge-to-edge design
  • Front bezel meets IP65-rated protection
[more]

Share

598.00 EUR
incl. 19% VAT, plus shipping
Available in 4 weeks
Add to cart

SSD (mSATA):

  • 7” 320 nits high brightness TFT LCD with LED backlight
  • 10-points Multi Capacitive Touch
  • Streamlined enclosure for highly efficient heat dissipation
  • Enclosed in robust aluminum casing
  • Edge-to-edge narrow bezel design and Fanless cooling system
  • Design for easy Wall mount, Panel Mount, VESA Mount installation
  • A true Flat, easy-to-clean front surface with edge-to-edge design
  • Front bezel meets IP65-rated protection
Jetway HPC070SC-FP2807A Flat-PanelFanless Panel PC provides outstanding outlook with industrial-grade quality for comprehensive industrial markets, such as retails, wholesales, hospitality, hospital or meeting room registration, logistics, self-service kiosk, residential automation and digital signage.

Jetway HPC070SC-FP2807A Flat-PanelFanless Panel PC is designed with 10-points Multi capacitive type touch screen. High brightness TFT LCD panel with LED backlight are equipped with this model. Streamlined enclosure with narrow bezel design.

Jetway HPC070SC-FP2807A Flat-Panel Fanless Panel PC are designed with a true flat, easy-to-clean front surface with edge-to-edge design. It is designed mounting clips for easy Wall mount, Panel Mount, VESA Mount installation.

Front bezel meets IP65-rated & NEMA 4 protection. Welcome to use Jetway Flat-Panel Panel PC.

 Display
Front Bezel – IP65, NEMA 4 rugged protection, Full planar metal border
Display Type – 7″ With LED Backlight
Brightness (cd/m²) – 320 nits
Display Color – 16.7M
Resolution – 1024 x 600 @ 60Hz
Viewing Angle (H/V) – 150°/145°
Pixel Pitch – 0.15 x 0.15 mm
Aspect Ratio – 16:9
Contrast Ratio – 500:1
Response Time – 30 ms
 Touch Screen
Type – projected capacitive type
Active Range – 152.40 x 91.44mm ±0.2mm
Transparency – ≧85%
Surface Hardness – ≧6H (JIS-5400)
Glass haze value – ≦ 3%
 CASE
Panel Material – Aluminum
Case Material – Iron
Color – Silver + white
Coating Requirement – Spray Paint
 Main System
CPU – Intel® Bay Trail-M N2807 1.58GHz/DC
RAM – 2G 1333MHz DDR3L SAMSUNG DRAM
BIOS – 64MB SPI Flash ROM
Storage – 1 * mSATA connector (Full size)
Watchdog Timer – 256 levels, 0~255 sec.
OS Support – Windows 7 / 8.1 / 10 / Linux (Option)
 I/O Connector
I/O Ports and Switches – 1 * USB3.0
– 1 * USB2.0
– 1 * RS232/422/485
– 1 * HDMI
– 1 * LAN (Gigabit LAN)
– 1 * Euro terminal block by 12V DC input
– 1 * Power button
 Expansion Interface
Expansion – 1 * PCI-E mini card for WIFI or 3G/4G
 Power
Power Input – Supports 12V DC Power in with over current protection fuse
– Provides 100~240V AC-DC 12V, 60W power adapter
Power Consumption – 13W
 Dimension
Case Dimensions – 197.0*136.0*50.7mm
 Certifications
Certifications – CE, FCC, IP65(Front)
 Environment
Temperature – Operating Temperature: -10 ~ 60° C (with W.T. DRAM/HDD in airflow condition)
– Storage Temperature: -20 ~ 85° C
Shock – Operating: 15G，11ms duration
Vibration – Operating: 5~500Hz/1 Grms
 Warranty
Warranty – 2 Years Limited Warranty(Panel and Touch is only Warranty 1 Year)
Data sheet Download (PDF)
Data sheet Print view
