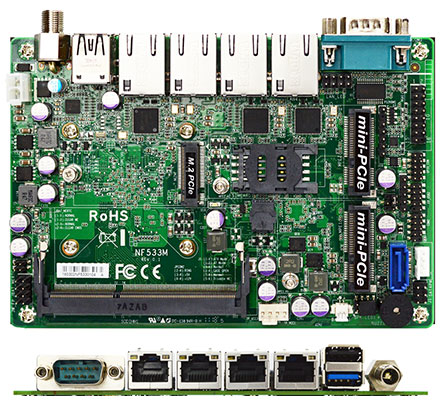

Jetway JNF533MS-1900 (Intel Bay-Trail)

Jetway JNF533MS-1900 (Intel Bay-Trail)
  • ASmedia LAN !

  • Intel® Bay Trail-D J1900 2.0GHz Quad Core Processor
  • Support 1 * DDR3L 1333/1066MHz Single CH up to 8GB
  • Support 1 * Serial ATAII (3Gb/s) Device
  • 4 * ASmedia PCIe GbE LAN, 1 * SIM card holder, 1 * External COM (RS232), 1 * Internal COM (RS232), 1 * External USB3.0, 1 * USB1.1/2.0, 2 * Internal USB1.1/2.0
  • 1 * full size mPCIe, 1 * half size mPCIe, 1 * M.2(M-key, 2242)
  • Lockable +12V DC-in PWR jack
  • 3.5” Form Factor (148mm x 102mm)


Share

339.00 EUR
incl. 19% VAT, plus shipping
In Stock (2 pcs)
Add to cart
RAM :

SSD (mSATA):

SSD (M.2 NVME):

Build/Install:
Model / Part Number
Model – JNF533M-1900
Part Number – JJNF533M-1900
Form Factor
Dimensions – 3.5” SBC (148 * 102 mm)
Processor System
CPU – Intel® Bay Trail-D J1900 Celeron Processor, TDP: 10W
Core Number – Quad Core
Max Speed – Processor Base Frequency: 2.0GHz, Burst Frequency: 2.42GHz
Cache – 2MB
Chipset – SoC
BIOS – AMI 64Mb Flash ROM
Expansion Slot
Mini-PCIe – 2 (1 * full size * 1 * half size)
mSATA – 0
PCIe – 0
M.2 – 1 (M-key, 2242)
SIM Card Holder – 0
Memory
Technology – Single Channel DDR3L 1333MHz
Max. – 8GB
Socket – 1 * SO-DIMM
Graphics
Controller – Intel® HD Graphics
VRAM – Shared Memory
VGA – 1 (Max. Resolution : 2560 * 1600@60Hz)
LVDS – 0
eDP – 0
HDMI 1.4 – 0
MultiDisplay – 0
Ethernet
Ethernet – 10/100/1000 Mbps
Controller – GbE LAN: ASmedia
Connector – 4 * RJ 45
Audio
CODEC – Realtek ALC662VD
Channel – MIC/Line Out
SATA
Max Data Transfer Rate – 1 * SATAII (3.0Gb/s)
Rear I/O
VGA – 0
HDMI – 0
Ethernet – 4
USB – 2 (1 * USB 2.0 + 1 * USB 3.0)
Audio – 0
Serial – 1 (RS232)
PS2 – 0
DC-input – 1
Internal Connector
USB – 2 ( 2 * USB 2.0 via 10pin header )
PS/2 – 1
LVDS / inverter – 0
eDP – 0
VGA – 1
Serial – 1 (RS232 with 5V/12V selectable header)
SATA – 1 * SATAII (3.0Gb/s)
mPCIe – 2 (1 * full size & 1 * half size)
SIM card holder – 1
M.2 – 1 (M-key, 2242)
GPIO 8-bit – 4in / 4 out
Chassis intrusion – 1 (via 2pin header)
SMBUS/ I2C – 1 (SMBUS)
AT mode – 1
TPM Header – N/A
Others – N/A
Watchdog Timer
Output – From Super I/O to drag RESETCON#
Interval – 256 segments, 0,1,2…255sec/min
Power Requirements
Input PWR – Lockable +12V DC-in (2-pin PWR Con)
Power On AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Certifications
Certifications – CE, FCC, RoHS, REACH
Environment
Temperature – Operating: 0°C – 60°C
– Storage: -20°C – 85°C
Warranty
Warranty – 2 Years Limited Warranty
