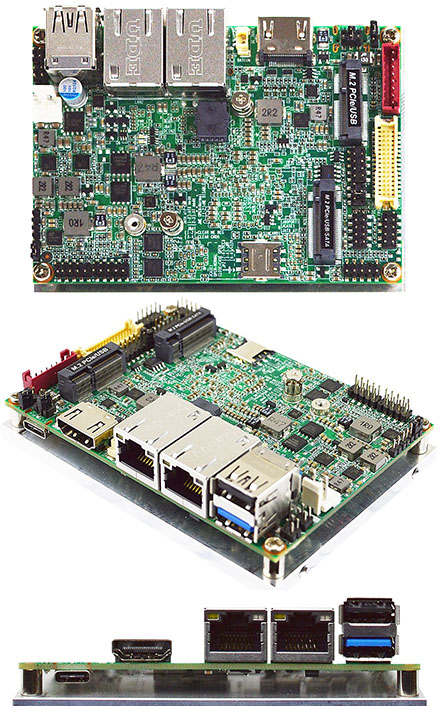

Jetway MP21-62100 Pico-ITX (Intel Elkhart Lake Celeron N SoC, 2x LAN)

Jetway MP21-62100 Pico-ITX (Intel Elkhart Lake Celeron N SoC, 2x LAN)
  • Intel Elkhart Lake Celeron N !
  • 1x HDMI !
  • 2x LAN !
  • Pico-ITX (100 x 72mm) !

  • Intel® Elkhart Lake Celeron® N Series SoC Processor
  • Long-Life Embedded Class with Planned Lifecycle Through Q1'2036
  • Onboard 4GB LPDDR4-3200
  • 2 * Realtek RTL8119I 1GbE
  • Supports Dual Display, HDMI + LVDS/eDP
  • Supports Cellular when using 64GB EMMC
  • 12V Power-In & ECO-design for EuP/ErP


Share

289.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
Model MP21-62100
MP21-62104 (64GB eMMC)
Form Factor Pico-ITX (100 x 72mm)
Processor System Intel® Celeron N6210, 1.20GHz – 2.60GHz Burst, 2-Core 2-Thread, 6.5W TDP
* Ships with flat silver aluminum heatsink for direct attach
Memory Onboard 4GB LPDDR4-3200, non-expandable
Graphics Intel® UHD Graphics for 10th Gen Intel® Processors
Ethernet 2 x Realtek RTL8119I 1GbE
Audio Realtek ALC897 HD Audio
Storage 1 x M.2 (SATA/PCIe 3.0 x1/USB3.1, B+M-key 2242)
*Cellular card only usable on MP21-62104 model
Super IO FINTEK F81966
TPM Intel fTPM 2.0 (PTT)
Back Panel Connectors 1 USB 3.2 Gen 2 Type-C (10 Gb/s)
1 HDMI 2.0b (4096 * 2160 @ 60Hz)
2 RJ45 LAN (10/100/1000)
1 USB 3.2 Gen 2 (10 Gb/s)
1 USB 2.0
Onboard I/O Connectors 1 M.2 B+M-key 2242/3042/3052 (SATA/PCIe 3.0 x1/USB3.1) *Cellular card usable only on MP21-62104 model
1 M.2 E-key, 2230 (PCIe 3.0 x1/USB 2.0 for WiFi)
2 Serial Headers (2 * RS232/422/485)
1 USB Pin Headers for 2 additional USB 2.0 Ports
1 24-bits Dual Channel LVDS (1080p @ 60Hz) or eDP (4K @ 60Hz)
1 Nano SIM Socket
1 8 bit GPIO Header
1 9-pin Front Audio Header
1 AT/ATX Mode Jumper
1 Chassis Intrusion Jumper
1 2-pin +12V Power-In (Mating plug: JST VHR-2N or TE 1-1123722-2)
Power Supply Internal Power Supply – the board can be powered via the internal +12V 2-pin power connector, where pin 1 is +12V and pin 2 is GND. The internal 2-pin power connector accepts a JST VHR-2N or TE 1-1123722-2 connector from the power supply. A 12V DC-in 5.5/2.5mm barrel jack cable included.
Environment Operating Temperature : -20 ~ 60°C
Storage Temperature : -20 ~ 85°C
Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10 64bit, Windows 10 IoT 64bit, Windows 11, Windows 11, IoT Enterpreise 64bit, Linux (CentOS 9, Debian 11.3, Fedora 36-1.5, FreeBSD 13.1, OPNsense 22.1.2, pfSense 2.6.0, Ubuntu 22.04)
