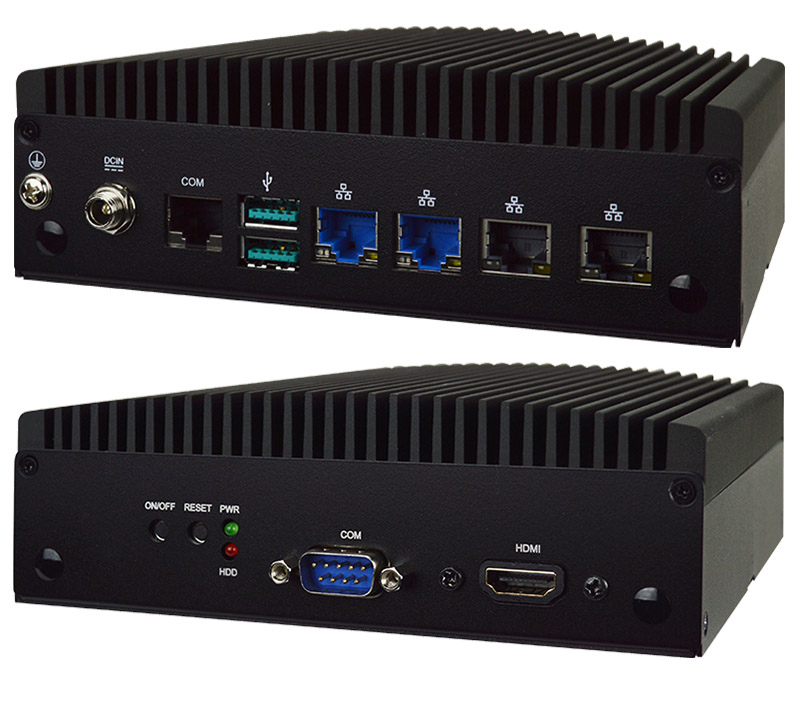

Jetway BFLFRPU2-A111 BoxPC (Intel Core i5-1335UE, 1x HDMI, 4x LAN, 1x RJ45 COM) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway BFLFRPU2-A111 BoxPC (Intel Core i5-1335UE, 1x HDMI, 4x LAN, 1x RJ45 COM) <b>[FANLESS]</b>
  • Barebone !
  • Intel Core i5-1335UE !
  • 1x HDMI !
  • 4x LAN !

  • Powered by Intel® 13th Gen Core™ i5-1335UE Processor (Raptor Lake, 15W TDP)
  • High-Speed Networking: 4 x 2.5GbE LAN for reliable, fast connectivity
  • High-Performance Memory: Supports DDR5 4800MHz SO-DIMM
  • Enhanced Security: Integrated fTPM with optional discrete TPM


Share

RAM :

SSD (M.2 NVME):

SSD (2.5"):

OS:

Build/Install:

MB FORM FACTOR3.5"
CPUOnboard Intel® 13th Gen Core™ i5-1335UE (Formerly Raptor Lake-P, TDP 15W)
CHIPSETIntel® SoC
MEMORY1 x DDR5 4800MHz, Single Channel SO-DIMM, up to 32GB
BIOSUEFI
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYIntel® PTT (Integrated fTPM)
TPM2.0 (dTPM, Optional)
RTC BATTERYLithium Battery
OS SUPPORTWindows® 11 (64bit)
Windows® 10 (64bit)
Linux
POWER
POWER REQUIREMENTDC-in 19V
90W Adapter: AC90~240V, DC19V/4.7A
POWER ON MODEATX (Default) Mode
DISPLAY
GPUIntel® Iris® Xe Graphics
HDMI1 x HDMI 1.2 (Max Resolution: 1920 x 1080@60Hz)
LAN
ETHERNET3 x RJ45 for Intel® I226-V 2.5GbE
1 x RJ45 for Intel® I226-LM 2.5GbE
SYSTEM I/O
REAR PANEL I/O2 x WIFI Antenna Holes
1 x DC-in (Lockable)
1 x COM (RJ45 Type)
2 x USB 3.2 Gen 2
4 x RJ45
1 x GND Hold
FRONT PANEL I/O2 x WIFI Antenna Holes
1 x Power Button
1 x Power LED
1 x Reset Button
1 x HDD LED
1 x RS-232/422/485
1 x HDMI
EXPANSION
M.21 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) support CNVio
1 x B-Key 3042/3052 (USB 3.2/PCIe 3.0 x1)
1 x M-Key 2242/2280 (PCIe 4.0 x4) support NVMe
SIM1 x Nano SIM Card Slot
MECHANICAL
MOUNTINGDesktop, Wallmount, Din Rail
DIMENSIONS (W x D x H)160.2 (W) x 142.0 (D) x 52.0 (H) mm
GROSS WEIGHT1.51 kg
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE-20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE-40°C ~ 85°C (-40°F ~ 185°F)
OPERATING HUMIDITY10 ~ 90% Relative Humidity, Non-condensing
CERTIFICATIONCE/FCC Class A
LVD
ESG DECLARATIONChina RoHS
CMRT Report
TSCA Declaration
WEEE
REACH
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
